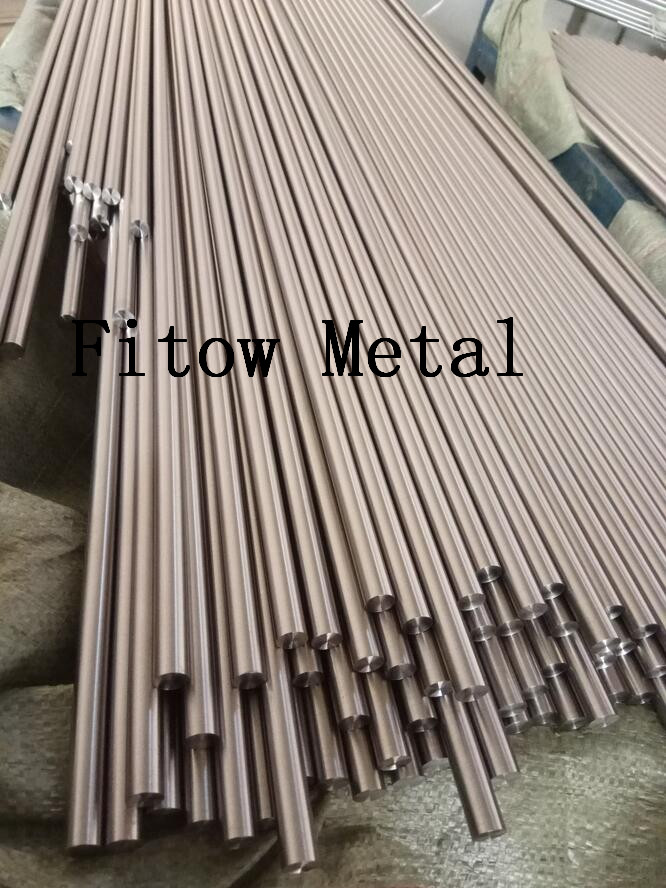

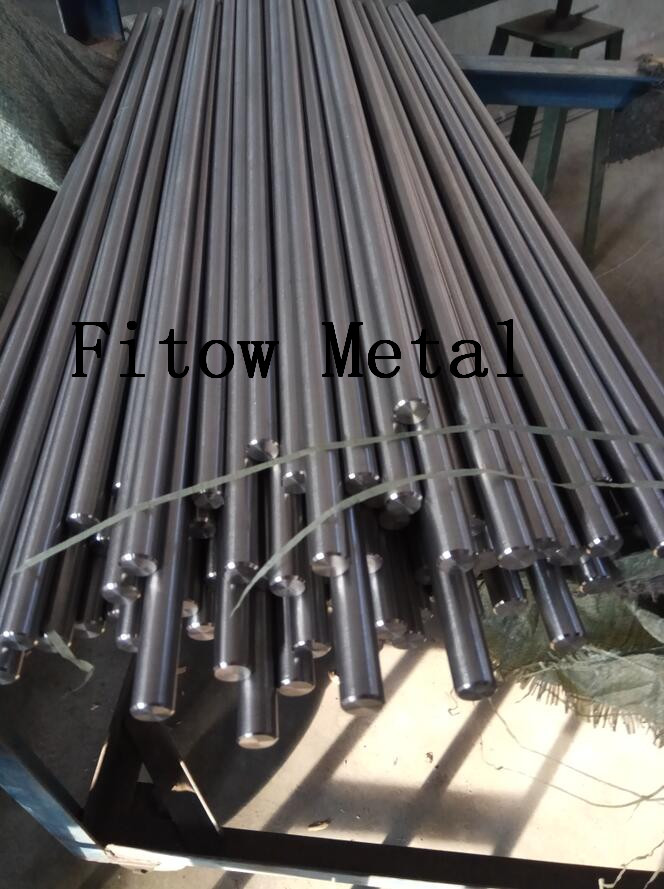

GR12 Titanium Bar dia20 (3Ti-0.3Mo-0.8Ni), grade12

Titanium Alloy bar dia16mm Grade 12 (Gr12) UNS R53400 Ti-0.8Ni-0.3Mo

materials:Grade 12 (Gr12) UNS R53400 Ti-0.8Ni-0.3Mo

size :diameter16Mm*L2500mm 500kg

Mechanical Properties (ASTM B348)

Grade	Tensile strength, MPa  (min)	Yield strength, MPa  (min)	Elongation, %(min)	Reduction of Area, %(min)
Gr12	483	345	18	25

Chemical Component (ASTM B348)

Grade	Ti	Mo	Ni	N, max	C, max	H, max	Fe, max	O,  max	Residuals
									Max each	Max total
Gr12	Main	0.2-0.4	0.6-0.9	0.03	0.08	0.015	0.30	0.25	0.1	0.4
