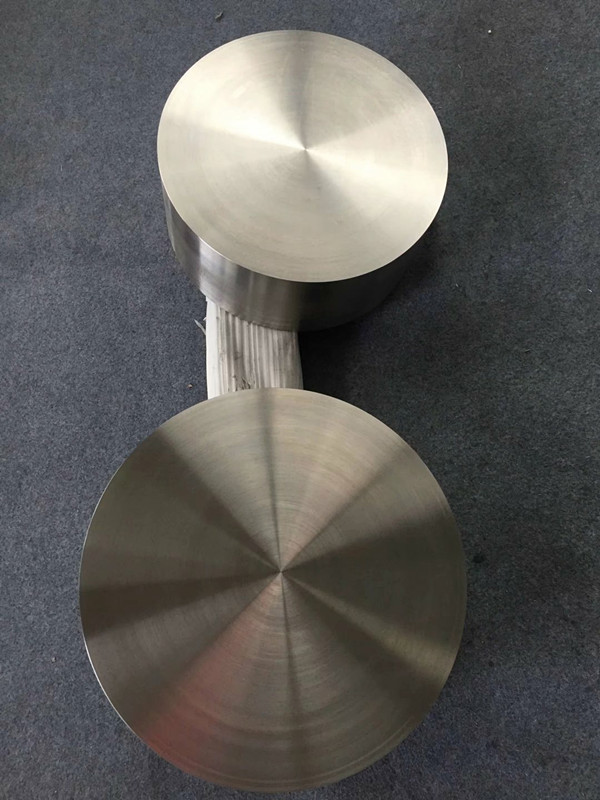

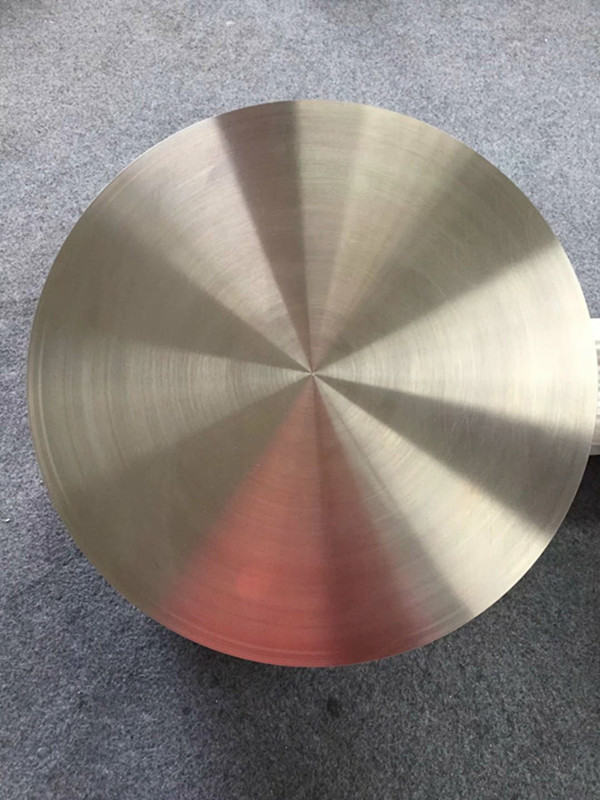

Titanium Forging Disc ASTM B381 F5
ACC. ASTM B381---Standard Specification for Titanium and Titanium Alloy Forgings DISC
Size:dia (20-600mm)*H(50-700mm)
Forged and rolled anneal
F5. Titanium alloy (6%aluminum, 4%vanadium) The most manufactured titanium alloy. Exceedingly high strength. High heat resistance.
Tensile Requirements ASTM B381 |
||||||||||||
Grade |
Tensile Strength (min) |
Yield strength 0.2%Offset |
Elongation in 4D (min) % |
Reduction of Area min% |
||||||||
Min |
||||||||||||
Ksi |
Mpa |
Ksi |
Mpa |
|||||||||
F5 |
130 |
895 |
120 |
828 |
10 |
25 |
||||||
Chemical Requirements (MAX) |
||||||||||||
Element |
C |
N |
H |
O |
Fe |
Al |
V |
|||||
F5 |
0.08 |
0.05 |
0.015 |
0.2 |
0.4 |
5.5-6.75 |
3.5-4.5 |
Titanium Properties:
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. In the appropriate oxidizing environment also has excellent corrosion resistance. Therefore, products are widely used in aerospace structural materials, such as aircraft, rockets, missiles and spacecraft, ship manufacture, chemical industry, conventional weapons, manufacturing, metallurgical industry, health care, ultra-high vacuum and other fields.
