Titanium clad copper

Titanium clad copper

titanium clad copper rod, also called the titanium clad copper. Titanium clad copper rod is coated with a certain thickness of copper layer of titanium metal anode, as main component. It will copper good conductivity and excellent corrosion resistance of titanium melting combined as one, mainly used in highly corrosive conditions of electrolysis, electroplating, metallurgy and metal anode electrolyzer aspects.

         Titanium copper composite rod known as a  titanium copper-clad, titanium layer is coated on a certain thickness of copper, a metal anode of the main components. It blends excellent corrosion resistance of copper excellent conductivity and titanium, the main application of electrolytic corrosion under strong working conditions, electroplating, hydrometallurgy and metal anodes regard, on the one hand it plays intermediate material copper material excellent electrical performance, on the other hand to play the clad material corrosion resistance, is a high-quality electrode material. I produced the composite strength of the composite rods 135Mpa, tensile shear strength of 180-260Mpa, has good electrical conductivity, the composite stick micro resistance was 7.77 × 10-6Ω, can significantly reduce the electrolyte solution, plating solution pollution, save energy to improve the environment, energy conservation and environmental protection of the electrode material. According to user requirements to produce different kinds of round, drum-shaped, square, flat and other composite rods, but also different shapes of bending and welding. Titanium clad copper composite rod performance: titanium clad copper  rod as a main component metal anode, and its role in the following three points: First: supporting anode; titanium copper composite rod has a certain strength and resistance to bending properties, the yield strength of the composite rod reaches 128MPa, fully meet the requirements of the production design. II: excellent conductivity; use explosion and rolling process for the production of titanium copper complex can fully close, no delamination so it has good electrical conductivity, the composite strength of 135Mpa, while the micro-resistance is 7.77 × 10-6Ω. Three: corrosion resistance, titanium-copper composite rod outer electrolytic medium in contact directly with the outer layer of titanium has excellent corrosion resistance (see below table), the long electrode life than other materials more than 10 times. Implementation of the standards: GB / T12769-2003 cladding material: titanium Ti, Ni Ni, zirconium Zr, stainless steel (316L) and other basic materials: copper (T2), oxygen-free copper (TU2), aluminum (AL) and other end shapes and specifications (mm) round: φ (2 ~ 80) × (0.5 ~ 3.0) drum: φ (25,27,29,32,34) × 14 × (1.0 ~ 2.0) square: side length (10 to 40) 5 flat: long (10 ~ 100) × width (10 to 30) rounded transition R (3 ~ 5) copper titanium copper composite rod chemical composition shall comply with the provisions of GB / T5231 corresponding grades, titanium chemical composition should be consistent with GB / T15073 or GB / T3620 provisions of the corresponding grades. Titanium copper composite rod ultrasonic flaw detection test

     We have the production of titanium clad copper rod patents, it is an invention patent. Our titanium clad copper rod technology value is to be able to make titanium and copper in organization structure are combined into one, like bags of meat general connection, this combination will not only increase the current resistance, it can make the copper normally play which is essentially the original conductive performance, but also can not affect the original copper excellent conductive performance basis, add the following four major advantages: supporting strength, corrosion resistance, save energy, improve environmental protection.

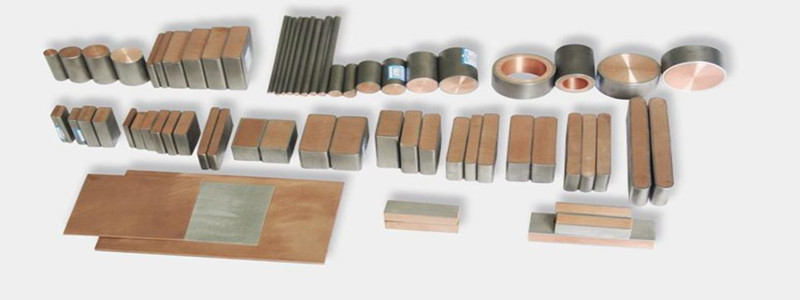

    We can according to customer specifications require the production of different titanium clad copper, zirconium copper, stainless steel clad copper, titanium copper steel three layer composite, titanium copper composite pipe and composite wire, also can be of different shapes of bending and welding.

Quality control of titanium copper composite rods

In terms of quality control, we take the control of three aspects:

1.chemical composition

Our titanium copper composite rod is in line with GB/T5231 and ASTM brand of corresponding provisions, titanium in line with the GB/T15073 or GB/T3620 and ASTM brand of corresponding provisions

2,compound degree

We adopt the ultrasonic flaw detection, ultrasonic testing can directly detect any part of the titanium/situation, direct and effective to reflect the complex degree of composite rods

3,surface quality

Composite rods surface should be clean, there should be no cracks, folds, defects such as inclusions;

After partial surface defect allowed to remove, remove may not make the shape and thickness of titanium layer is beyond the minimum allowed size.
