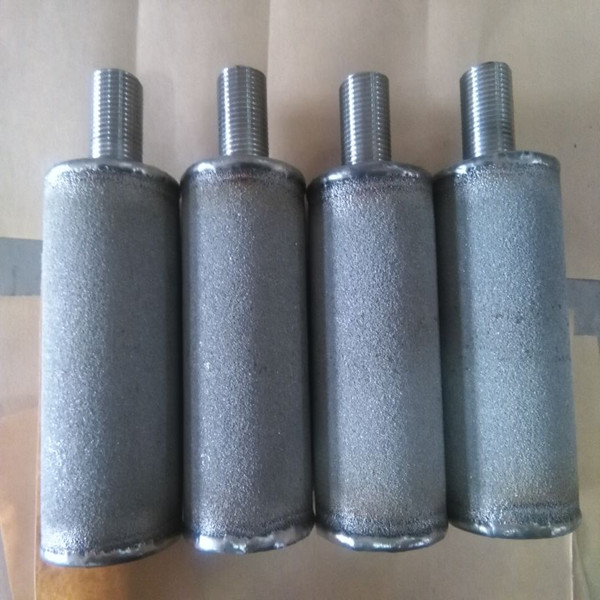

Titanium powder microporous filter cartridge

Pipe : OD10-150MM* wall thickness 2-5MM

Materials : titanium GR1 GR2

Feature:

1.Working Temperature:-200—1000°C

2.Corrosion Resistance

3.High Filtering Efficiency

4.Metallic capacities, such as noise reduction,hot resistance,heat conduction,high strength and etc

5.Easy to welding and long working life

Filter Shape:

Could be cartridge filters,disc filters ,cup filters,cap filters,filter palte and etc

Standard sintered filter cartridges size:



OD 10mm,20mm,30mm,40mm,50mm,60mm,70mm,80mm
Thickness of wall 1.0mm/2.0mm/3.0mm/4.0mm/5.0mm
Length 10",20",30",40"
Connectors DOE,SOE,Thread,Screw,Flange,220,222,226(Code7



Application:

 separation and purification of solid-liquid, gas-liquid and gas-solid in the petrifaction, hydraulic manufacturing and medical apparatus and instruments of basic industries.



Technique parameters



titanium powder sintering filter element   technique parameters

using temperatur:≤300°C











filtering level

filtration precision

um

maximum diameter

um

permeability coefficient

10-12m2



permeability

m3/h.m2.kpa

thickness mm

compression strength

Mpa/cm3









T9

0.2

2.5



1.5

0.6-10

3









T8

0.5

4



3

0.6-10

3









T7

1

6



5

0.6-10

3









T6

2

10



15

0.6-10

3









T5

5

15

0.04

40

0.6-10

2.5









T4

10

30

0.15

120

0.6-10

2.5









T3

20

60

1.01

250

0.6-10

2.5









T2

30

100

2.01

500

0.6-20

2.5









T1

50

160

3.02

800

0.6-20

2.5









The product performance can achieve and even exceed GB.

The internal pressure of powder rolled and roll tube welding is more than 0.3Mpa













































separation and purification of solid-liquid, gas-liquid and gas-solid in the petrifaction, hydraulic manufacturing and medical apparatus and
