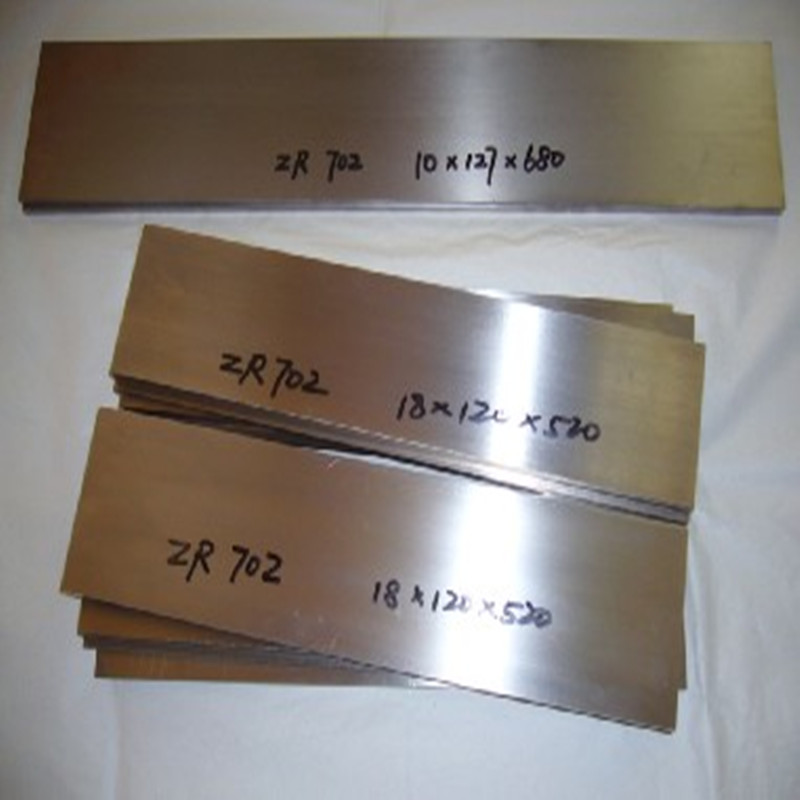

ASTM B551 Zirconium sheet/plate

R60702  R60704 R60705 Zr1  ASTM B551 Zirconium sheet/plate

 Designation, condition and size of zirconium plate, foil and strip

Table1



Designation

Description

condition

size(mm)

Thickness

Width

Length

Zr01

Zr-1

Zr702



Foil

Cold rolling R)

Recrystallized (Y)

Eliminate stress state(m)



0.05~0.13

50~200

≥500

Strip

>0.13~0.5

50~300

≥300

Plate

>0.3~10.0

50~600

≥500

  Tolerance of thickness, width and length

Table 2                                                   unit:mm



Thickness

Thickness tolerance

Width

Width tolerance

Length

Lengthtolerance

>0.05~0.07

±0.007

50~150

±2.0

100~1200

±5.0

>0.07~0.1

±0.010

50~200

±2.0

100~1200

±5.0

>0.1~0.13

±0.025

50~200

±2.0

100~1200

±5.0

>0.13~0.2

±0.04

50~200

±2.0

100~1200

±5.0

>0.2~0.4

±0.05

50~200

±2.0

100~1200

±5.0

>0.4~0.65

±0.08

50~200

±2.0

100~1200

±5.0

>0.65~1.0

±0.10

50~200

±2.0

100~1200

±5.0

>1.0~1.5

±0.13

50~200

±2.0

100~1200

±5.0

>1.5~1.8

±0.15

50~200

±2.0

100~1200

±5.0

>1.8~2.5

±0.18

50~200

±2.0

100~1200

±5.0

>2.5~3.0

±0.23

50~400

±3.0

100~1200

±5.0

>3.0.~3.5

±0.25

50~400

±3.0

100~1200

±5.0

>3.5~4.0

±0.30

50~400

±5.0

100~1200

±5.0

>4.0~5.0

±0.35

50~400

±5.0

100~1200

±5.0

>5.0~6.0

±0.40

50~400

±5.0

100~1200

±5.0

>6.0~8.0

±0.45

50~400

±5.0

100~1200

±5.0

>8.0~10.0

±0.50

50~400

±5.0

100~1200

±5.0

 2. Surface condition



Surface: The sheets are free from impurities, splits, fractures and indentations,having an impact on a common processing or application of the product.
Surface roughness: Cold rolled. bright: Ra ≤  0.80 μm
Cold rolled. ground: Ra ≤  1.20 μm
Cold rolled. pickled (dull): Ra ≤  1.60 μm

. Technical condition

 GB/T21183(Chinese standard for zirconium plate )

 ASTM B551 (American standard for zirconium plate , sheet, foil and strip)
