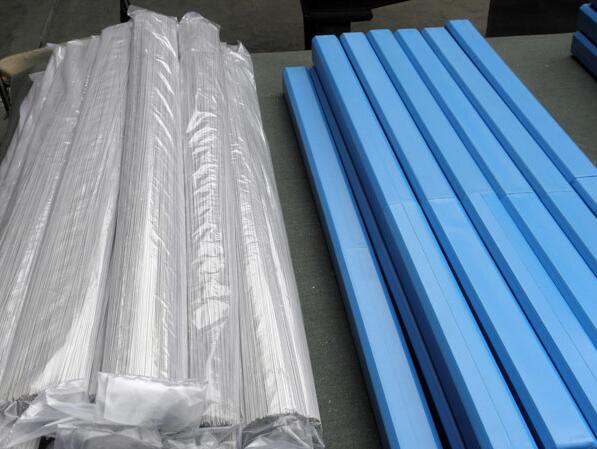

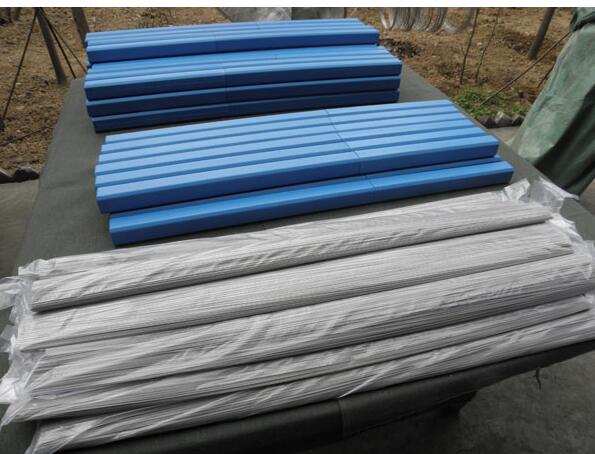

ASTM B863 erti-2 straight titanium wires

General Information

Products: Titanium wire

Standard: AWS A5. 16, ASTM B863, ASTM B348

Materials: ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5, ERTi-7, ERTi-9, ERTi-12, ERTi-23

                  Grade1, Grade2, Grade3, Grade4, Grade5,Grade7, Grade9, Grade12, Grde23



AWS A5.16	C	O	N	H	Fe	Other	UNS Number	AMS	ASTM B863
ERTi-1	0.03	0.03-0.10	0.012	0.005	0.08		R50100	4951	Grade-1
ERTi-2	0.03	0.08-0.16	0.015	0.008	0.12		R50120	4951	Grade-2
ERTi-3	0.03	0.13-0.20	0.020	0.008	0.16		R50125	4951	Grade-3
ERTi-4	0.03	0.18-0.32	0.025	0.008	0.25		R50130	4951	Grade-4
ERTi-5	0.03	0.13-0.20	0.030	0.015	0.22	AI 5.5-6.7 V 3.5-4.5	R52400	4954	Grade-5
ERTi-7	0.03	0.08-0.16	0.015	0.008	0.12	Pd 0.12-0.25	R52401		Grade-7
ERTi-9	0.03	0.08-0.16	0.020	0.008	0.25		R56320		Grade-9
ERTi-12	0.03	0.08-0.16	0.015	0.008	0.15	Mo 0.6-0.9 Ni 0.2-0.4	R53400	4902	Grade-12
ERTi-23	0.03	0.03-0.11	0.012	0.005	0.20	AI 5.5-6.5 V 3.5-4.5	R56408	4956	Grade-23





Millimeter	0.8	1.0	1.2	1.6	2.0	2.4	3.0	3.2	4.0	6.0
Inch	0.031'	0.039'	0.047'	0.062'	0.079'	0.093'	0.12'	0.125'	0.16'	0.24'
Straight Wire (MIG)				√	√	√	√	√	√	√
Spool (MIG)	√	√	√	√	√	√
Coil (MIG)			√	√	√	√	√	√	√	√

Titanium Wire Dimension Tolerance



Diameter	0.1-0.3mm	0.3-0.8mm	0.8-2.0mm	2.0-6.0mm
Tolerance	+/-0.025	+/-0.04	+/-0.05	+/-0.10
Length	200-500mm	500-1000mm	1000-2000mm	2000mm
Tolerance	+/-1.0	+/-1.5	+/-2.0	+/-2.5
