Nitinol memory alloy wire
1.Dia 0.1~5.0mm x L

2. Super-Elastic & Shape memory

3. ASTM F67, ASTM F136, F2063

4.In store. Nitinol memory wires

Nickel titanium Shape Memory Medical Alloy Wire
TiNi memory alloy wire,NiTi shape memory wire,Nickel-Titanium shape memory alloy rod,Nickel Titanium wire,Nitinol wire

Nickel Titanium (also known as Nitinol) is the unique class of materials known as shape memory alloys,A thermoelastic martensitic phase transformation in the material is responsible for its extraordinary properties.These properties include the shape memory effect,supere;asticity,and high damping capability.The properties of Nitinol can be modified to a great extent by changes in alloy composition,mechanical working,and heat treatment.In most cases a trial and error process is required to optimize these factors for a particular application.

Shape memory alloys (SMAs) are metals that "remember" their original shapes and can automatically recover from deformation at certain temperature (Phase Transition Temperature). They are useful for such things as actuators which change shape, stiffness, position, natural frequency and other mechanical characteristics in response to temperature or electromagnetic fields.

Ti-Ni alloy was the first and most useful of all shape-memory alloys. Its Phase Transition Temperature is very sensitive to the composition. (Each additional 0.1% Ni will causes the Phase Transition Temperature to drop 10 °C. Adding a third element will also significantly influence the Ti-Ni alloy's Phase Transition Temperature). In addition, the Ti-Ni alloy also has good heat and corrosion resistance, high strength, unique thermal and fatigue resistance, high biocompatibility and high damping characteristics, etc., which have won the material a wide range of application.

Applications: Ti-Ni shape-memory alloy wire can be used in cell phone antennas, children's toys, experimental materials, eye glasses components and medical equipment such as surgical stitching wire, birth control loop and high-quality memory alloy wire of other areas.

Products	Implantable Nitinol memory alloy wire
Grade	Ni-Ti: 50:50 at%, 45:55%,
Standard	ASTM F67, ASTM F136, F2063, ISO 5832
Application	Medical Implant, surgical instrument, Dental implant, Bone surgery set , Woman bra. etc
Size	Dia0.1mm-Dia 5.0mm
Condition	M, Annealed, Polished, Picking
Package	Wooden cases for export

 Tolerance

Diameter	0.1~0.2	>0.2~0.5	>0.5~1.0	>1.0~2.0	>2.0~4.0	>4.0~7.0
Tolerance	-0.025	-0.04	-0.06	-0.08	-0.10	-0.14





1. Name:  Superelastic & Shape memory alloy  NiTi  Memory Alloy Wires

2. Grade:  TiNi-SS, TN3 , TNC

3. Specification: 0.01~5.0MM

4. Shape: Straight or in coils

5. Application: wire drawing , weaving soft tube or wire mesh, filter products , steel- spring wire, widely in  antenna,telecommunications,mobile phone, machine parts, medical apparatus , aerospace,  electrical power industries .

6.  physical property

Density (g/cm^3)	6.45
Melting point (°C )	1240-1310
Specific heat capacity( kJ/(kg·°C)	0.46
Coefficient of thermal conductivity    (W·m-1·K-1)	10
Resistivity  (10-6 Ω·m)	80
Expansion coefficient  (10-6 Ω·K-1 )	10.4
Elastic modulus (GPa)	40-80
HV	180-200 (low-temperature metallography) 200-350 (high-temperature metallography)
Tensile strength  (MPa)	700-1100
Yield strength	50-200 (low-temperature metallography) 100-600 (high-temperature metallography)
Elongation  δ %	20-60
phase transition temperature (Af / °C)	-10-100
Recovery response variable %	8,  6,  2 , <0.5
Utmost service temperature (°C )	Af +60,  250
Maximum recovery stress  (Mpa)	680

7.

Alloy

Chemical composition

Af (Fully annealed)

Min. elongation to failure [%]

Max. Residual  elongation after 6% strain [%]

Main Applications

Specifications

Superelastic Ni-Ti alloy

TiNi-SS

Ti-50.8at%

-5°C ± 5°C.

10

0.1

Eyeglass Frames, Cellular Phone Antennae, Bra Underwire

Q/XB1516.2 Q/XB1516.2

TN3  TNC

TiNiVAl TiNiCr

-40°C ~50°C

10

0.1

Body temperature Ni-Ti alloy

TiNi-YY

Ti-50.7at%Ni

Functional Af=33 ± 3

15

0.1

Implantable devices,Bone staples Vascular Stents

ASTM 2063

Ti-Ni-01

55.6~55.8 wt%Ni

20 - 40

15

0.1

Guide wires, Stents Orthodontic Arches

Q/XB1516.1

High temperature Ni-Ti alloy

Ti-Ni-02

54.8~55.5wt%Ni

45 - 95

10

0.1

pecifications for Ti-Ni alloy wire:

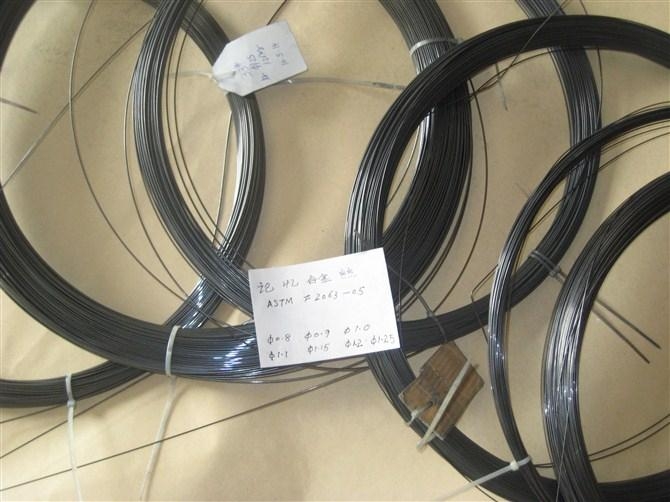

Ti-Ni Shape Memory alloy wire Standard: ASTM F2063-05
Dia.	Length≥m	Tolerance	Surface 1	Surface 2	Surface 3
0.1mm	50	+/-0.015mm	Black	Pickling	/
0.15mm	70	+/-0.015mm	Black	Pickling	/
0.2mm	70	+/-0.015mm	Black	Pickling	/
0.25mm	80	+/-0.02mm	Black	Pickling	/
0.3mm	80	+/-0.02mm	Black	Pickling	/
0.4mm	80	+/-0.02mm	Black	Pickling	Polished
0.45mm	90	+/-0.02mm	Black	Pickling	Polished
0.5mm	90	+/-0.02mm	Black	Pickling	Polished
0.6mm	80	+/-0.02mm	Black	Pickling	Polished
0.7mm	80	+/-0.02mm	Black	Pickling	Polished
0.8mm	100	+/-0.02mm	Black	Pickling	Polished
0.9mm	100	+/-0.02mm	Black	Pickling	Polished
1.0mm	100	+/-0.02mm	Black	Pickling	Polished
1.1-1.5mm	70	+/-0.025mm	Black	Pickling	Polished
1.6-2.0mm	60	+/-0.025mm	Black	Pickling	Polished
2.1-3.0mm	60	+/-0.03mm	Black	Pickling	Polished
3.1-4.0mm	50	+/-0.04mm	Black	Pickling	Polished
4.1-5.0mm	50	+/-0.05mm	Black	Pickling	Polished
>5.1m(rod)	5.1 x 1000mm		Black	Pickling	Polished



Specifications for Ti-Ni alloy strip:

Ti-Ni flat strip in coil Length>10m Standard: ASTM F2063-05
Size (mm)	Thickness tolerance(mm)	Width tolerance(mm)	Surface1	Surface2	Surface3
0.3x 0.6 x L	+/-0.05	+/-0.1	Black	Pickling	Cold mirror
0.3 x 0.7x L	+/-0.05	+/-0.1	Black	Pickling	Cold mirror
0.3 x 0.8 x L	+/-0.06	+/-0.1	Black	Pickling	Cold mirror
0.3 x 0.9 x L	+/-0.06	+/-0.15	Black	Pickling	Cold mirror
0.3 x 1.0 x L	+/-0.07	+/-0.15	Black	Pickling	Cold mirror
0.3 x 1.1 x L	+/-0.07	+/-0.2	Black	Pickling	Cold mirror
