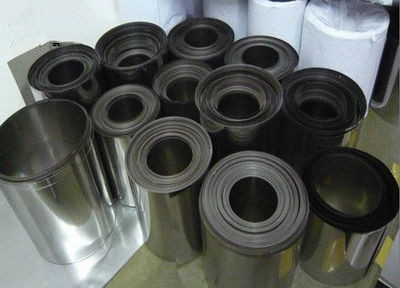

pure nickel foil and nickel strip
Nickel foil Nickel strip
1.Material:N200,N201,NO2201,NO2200,
2.Standard:ASTM B162
3.Thickness:0.03-1.0mm
1.The size we could offer :
|
Thickness (mm) |
Width (mm) |
Length (mm) |
|
|
0.025-0.08mm |
50-200mm |
Any |
In coil |
|
0.08-0.2mm |
10-300mm |
Any |
In coil |
|
0.2-0.8 |
10-500mm |
Any |
In coil /sheet |
|
0.8-5.0mm |
50-1000mm |
1000mm |
In sheet |
|
|
|
|
|
Chemical requirements
|
Grade |
Ni+Co |
Cu |
Si |
Mn |
C |
Mg |
S |
P |
Fe |
|
N4 |
99.9 |
0.015 |
0.03 |
0.002 |
0.01 |
0.01 |
0.001 |
0.001 |
0.04 |
|
N6 |
99.5 |
0.10 |
0.10 |
0.05 |
0.10 |
0.10 |
0.005 |
0.002 |
0.10 |
|
Ni201 |
99.0 |
≤0.25 |
≤0.35 |
≤0.35 |
≤0.02 |
≤0.01 |
≤0.40 |
||
|
Ni200 |
99.0 |
0.20 |
0.30 |
0.30 |
0.15 |
0.01 |
0.40 |
Metal Mechanical Properties
|
Tensile Strength |
ksi |
65 |
|
|
MPa |
449 |
|
Yield Strength |
ksi |
20 |
|
|
MPa |
138 |
|
Melting Point |
|
1728K/2651ºF/1455 ºC |
|
Density |
g.cm-3 |
8.9(20 ºC) |
|
Hardness |
HB |
335(25 ºC) |
|
Purity |
|
99.5%~99.9% |
