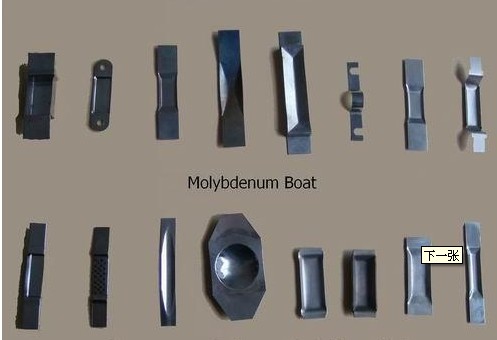

Molybdenum boat or Molybdenum evaporator boat

Molybdenum boat or Molybdenum evaporator boat

Density: 1015g/cm3

CAS: 7439-98-7

Mo content: >=99.95%

Design form: quadrate box, round barrel, or as your requirement

Color: bright, chemical clean gray black

Joining method: riveted, welded or fold

2, Designation: Mo1, Mo3, TZM

3, Types: punched, folded, welded, rivet

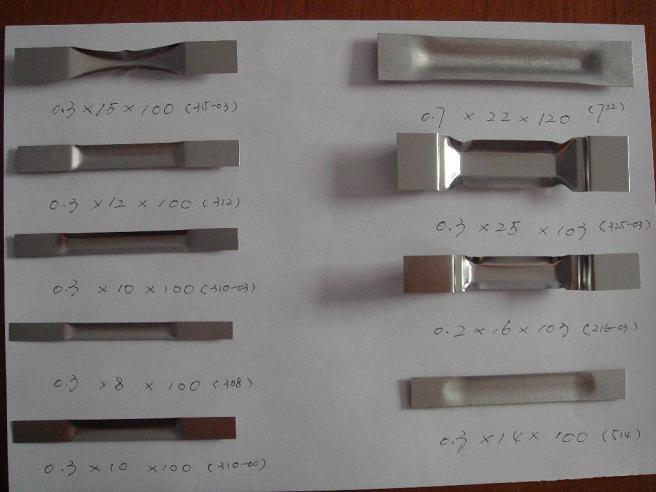

Below are most of the standard sizes. If you do not see the size of molybdenum boat that you require, please feel free to contact us.
Dimensions and tolerance (According to clients’ requirements):

Type	T(mm)	w(mm)	Lth (mm)	L1	Deep(mm)
310	0.3	10	100	60	1.5-2.0
215	0.2	15	100	60	1.5-2.0
315	0.3	15	100	60	1.5-2.0
515	0.5	15	100	60	1.5-2.0
218	0.2	8	100	60	1.5-2.0
312	0.3	12	100	60	1.5-2.0
251	0.2	10	50	25	1.5-2.0
353	0.3	13	50	25	1.5-2.0
220	0.2	15	102	40	5.0
223	0.2	23	100	15	1.5-2.0

Molybdenum boat is widely used in military industry, electronic industry and light industry. In addition, it can be also applied in metalizing, electron beam spraying and vacuum coating industry. We can offer molybdenum boat according to your specific requirements.
