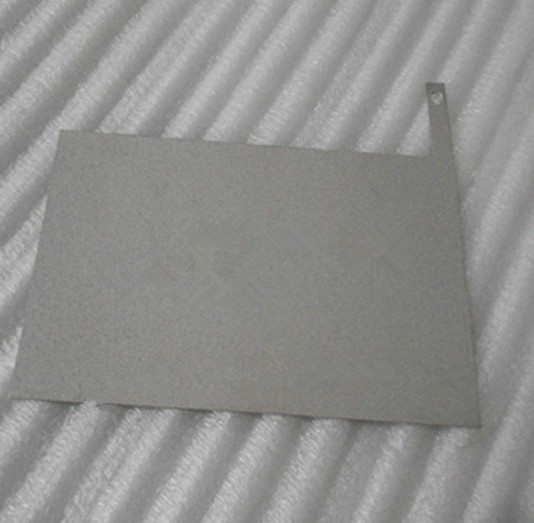

Platinized Titanium Anode Plate

Material

 Base Material: Titanium (Gr1, Gr2, TA1, TA2)

• Working Current: < 8000 A/㎡
• Workmanship: Plating
• Coating Material: Platinum (purity 99.99%)
• Noble Metal Content: ≥ 21.48  g/㎡
• Platinum Thickness:  0.5-15μm
• PH Value: 1-12

• Max content of Fluoride ion is 200PPM

  Homogenous degree: >=85%

  Oxygen-liberated potential <=1.8V

Technology

Sand blasting,Acid washing,Brush Coating & Sintering

Dimension and Shape

Different dimension and shape is available,or according to custom's /drawing

Working

Parameter

1)    Current density≤2000A/M2

2)    Temperature<80°C

Features

1)    Effective& environment-friendly method

2)    High anti-corrosion property

3)    High current efficiency property

4)    Low chlorine evolution voltage

5)    High catalytic property

6)    Long lifetime

7)    Light weight electrodes

8)    Keep the operating voltage stably

Applications

1)    Organic sewage treatment,

2)    Chemical sewage treatment,

3)    Pesticide sewage treatment,

4)    Drinking water disinfection,

5)    Bleaching & dyeing,

6)    Swimming pool water

7)    Domestic sewage treatment,

8)    Hospital sewage treatment,

9)    Food industry disinfection

10)  Industrial waste water treatment,etc.

Remarks

1)    Titanium anode also called MMO anode,DSA & Insoluble anode

2)    Cathode also be provided
