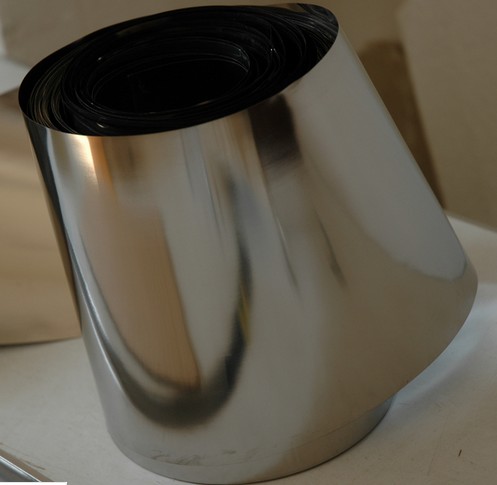

Tantalum foil, Tantalum strip
Tantalum foil, Tantalum strip
Description:
Tantalum (Ta) is a dark blue-gray metal that is very heavy, ductile and hard and has high corrosion resistance. Tantalum is especially resistant to chemicals at temperatures below 150 °C and can only be dissolved with hydrofluouric acid. It has the fourth highest melting point of all metals and is able to form extremely thin and protective oxide layers for high-quality capacitors, making it an excellent material for foil.
Applications:
• Used in laboratory equipment.
• Used as a substitute for platinum.
• Used in manufacturing super alloys and electron-beam melting.
• Used in metallurgical, machinery processing, glass and ceramic industries.
Specifications of SAM Tantalum Foil / Strip:
Packing: In Coil, Flat
Condition: Annealed
|
Product Name |
Thickness (mm) |
Width (mm) |
Length (mm) |
Material |
Standard |
Purity |
|
Tantalum Foil |
0.03-0.07 |
30-200 |
>50 |
UNS R05200, UNS R05400 |
ASTM B708-98 |
≥99.95% or 99.99% |
|
Tantalum Strip |
0.03 |
1-1.5 |
Up to 50000 |
UNS R05200, UNS R05400 |
ASTM B708-98 |
≥99.95% or 99.99% |
|
Grade and size |
Annealed |
|||
|
Tensile strength min, psi (MPa) |
Yield strength min,psi (MPa)(2%) |
Elongation min, % (1 inch gage length) |
||
|
Sheet, foil. and board (RO5200, RO5400) Thickness<0.060"(1.524mm) Thickness≥0.060"(1.524mm) |
30000 (207) |
20000 (138) |
20 |
|
|
25000 (172) |
15000 (103) |
30 |
||
|
Ta-10W (RO5255) Sheet, foil. and board |
70000 (482) |
60000 (414) |
15 |
|
|
70000 (482) |
55000 (379) |
20 |
||
|
Ta-2.5W (RO5252) Thickness<0.125" (3.175mm) Thickness≥0.125" (3.175mm) |
40000 (276) |
30000 (207) |
20 |
|
|
40000 (276) |
28000 (193) |
20 |
||
|
Ta-40Nb (RO5240) Thickness<0.060"(1.524mm)
|
40000 (276) |
28000 (193) |
20 |
|
|
Chemistry % |
||||||||||||||||
|
Designation |
Chief component |
Impurities maxmium |
||||||||||||||
|
Ta |
Nb |
Fe |
Si |
Ni |
W |
Mo |
Ti |
Nb |
O |
C |
H |
N |
||||
|
Ta1 |
Remainder |
|
0.004 |
0.003 |
0.002 |
0.004 |
0.006 |
0.002 |
0.03 |
0.015 |
0.004 |
0.0015 |
0.002 |
|||
|
Ta2 |
Remainder |
|
0.01 |
0.01 |
0.005 |
0.02 |
0.02 |
0.005 |
0.08 |
0.02 |
0.01 |
0.0015 |
0.01 |
|||
