titanium Fastener Types
Fastener Types

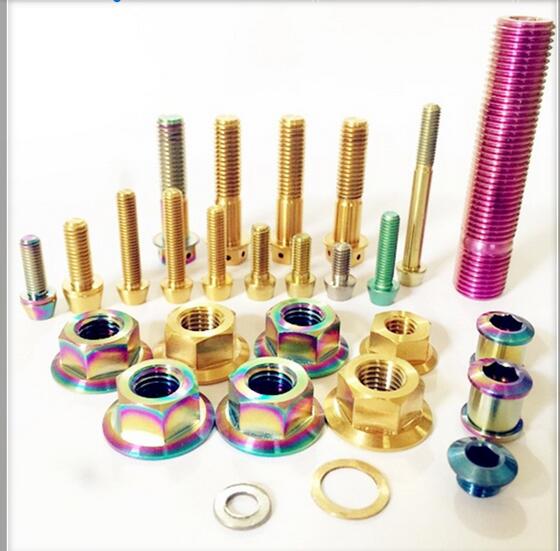

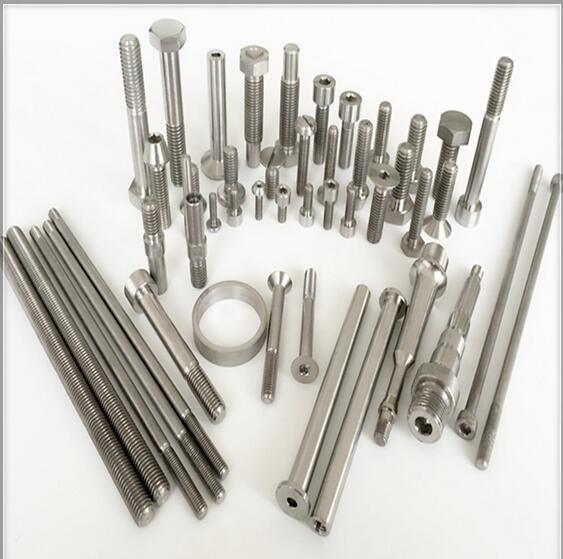

The table below shows a selection of the types of fasteners we currently manufacture and supply.
 GB/T5782-2000 DIN931 M3-M36HEXAGON HEAD BOLT |
 GB/T5782-2000 DIN991 M3-M36 HEXAGON HEAD BOLT FULL THREAD |
 GB/T8-1988 SQUARE HEAD BOLTS |
 GB/T5781-2000HEXAGON HEAD BOLTS |
 CONICAL SOCKET HEAD SCREW |
 ISO7380 HEXAGON SOCKET BUTTON HEAD SCREWS |
 GB/T69-2000COUNTERSURK SLOTED RAISED HEAD SCREWS |
 CONICAL SOCKET HEAD SCREW |
 DIN6912 SOCKET HEAD CAP SCREWS |
 DIN6912 SOCKET HEAD CAP SCREWS |
 DIN TAPERED SOCKET HEAD CAP SCREWS |
 GB/T70 3-2000 DIN7991HEXAGON SOCKET COUNTERSUNK HEAD SCREWS |
 GB/T65-2000SLOTTED CHEESE HEAD SCREW-PRODUCT GRADE A |
 DIN6921 HEXAGON BOLTS WITH FLANGE |
 DIN975 THREADED ROD |
 GB/T901-1988 DOUBLE END STUDS |
 GB/T6170-2000 DIN934 HEXAGON NUTS |
 GB/T6172-2000 DIN439 HEXAGON THIN NUTS |
 DIN557/562 SQUARE NUTS |
 DIN EN 1661 REPLACE DIN6923 HEXAGON NUTS WITH FLANGE |
 12 POINTS HEAD SCREW |
 12 POINTS SOCKET HEAD CAP SCREW |
 12 POINTS HEAD SCREW |
 12 POINTS SOCKET HEAD CAP SCREW |
 GB/T97 1-2000 DIN129 FLAT WASHER |
 GB/T859-1987 DIN127 HELICAL SPRING LOCK WASHER |
 GB/T854-1988 DIN432 LOCKING TAB WASHERS |
 TAB WASHERS WITH SHORT AND LONG TAB AT RIGHT ANGLES |
 PEDAL SPINDLE |
 SHAFT PARTS |
 SHAFT PARTS |
 SHAFT PARTS |
 AUTO WHEEL NUTS |
 RACING LUG NUTS |
 AUTO LUG BOLTS |
 AUTO LUG BOTS. SURFACE HARDENING TREATMENT |
 SPECIAL SHAPED HEX NUTS |
 VANED NUTS |
 12 POINT SPECIAL SHAPED NUT |
 FITTING JOINT PARTS |
Chemical Composition Titanium Fasteners
| Composition % | |||||||||||
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
| Grade 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | balance |
| Grade 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | balance |
| Grade 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | balance |
| Grade 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | balance |
| Grade 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | balance |
| Grade 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | balance |
| Grade 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | balance |
| Grade 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | balance |
Tensile Requirements
| Grade | Tensile strength (min) | Yield strength (min) | Elongation (%) | ||
| ksi | MPa | ksi | MPa | ||
| Grade 1 | 35 | 240 | 20 | 138 | 24 |
| Grade 2 | 50 | 345 | 40 | 275 | 20 |
| Grade 3 | 65 | 450 | 55 | 380 | 18 |
| Grade 4 | 80 | 550 | 70 | 483 | 15 |
| Grade 5 | 130 | 895 | 120 | 828 | 10 |
| Grade 7 | 50 | 345 | 40 | 275 | 20 |
| Grade 9 | 90 | 620 | 70 | 438 | 15 |
| Grade 12 | 70 | 438 | 50 | 345 | 18 |
